Compiled original guest PICA draws¶

The adapter connects a bounded PICA draw subset to the standard guest GSP queue. An original normal-CRT ARM application uses unmodified pinned libctru to submit two command lists, retain uploaded shader/state between them, render indexed triangles into owned linear allocations and display both screens. The default draw profile uses CPU software rendering. Optional GX2 profiles translate the bounded vertex shader, sample Texture0 when enabled and draw into an owned GPU surface before the same guest display transfers. General PICA behavior remains unsupported.

Build and run the original program¶

After the verified SDK and ARM fixture setup, run:

python3 tools/validate-libctru.py --application draw --wiiu --sanitize \
  --output artifacts/reports/compiled-draw-local

The output directory must be new. The report records the source commit and dirty state, library pin/hash, generated code identity, exact frame comparisons and RPX/WUHB hashes. The original program executes 17,420,794 ARM instructions with zero fallback, four draws, four triangles, 97,200 covered fragments and 36 vertex shader instructions. Its own target and transferred framebuffer checks must pass before it prints CTR2WUP compiled PICA draws PASS and exits.

The host runner checks every displayed pixel. A separate integer Python image oracle independently compares all 172,800 top/bottom pixels in the captured PPMs. The two images show a dark background and a central region divided diagonally into red and green triangles; top and bottom display sizes are 400×240 and 320×240.

The images below are original host captures, not console screenshots:

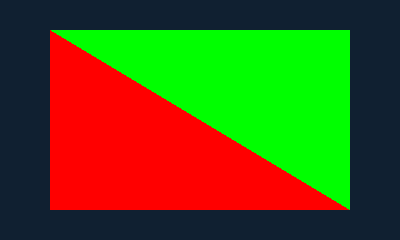

Original compiled guest top screen

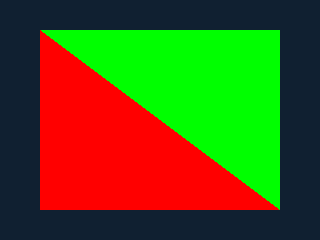

Original compiled guest bottom screen

CI executes the sanitized original guest and native build on each PR. Download wiiu-guest-draws-<source commit> for the checked RPX/WUHB, PPM images, report, checksums, source/SDK provenance and notices. This artifact contains original diagnostics; it is not a game WUP or a physical-console result.

GX2 guest backend¶

Build the distinct native profile with:

python3 tools/validate-libctru.py --application draw --wiiu --gx2 --sanitize \
  --output artifacts/reports/compiled-gx2-local

The native adapter receives decoded original vertex inputs, index order, uniforms and retained PICA state. It compiles MOV/ADD/MUL/NOP/END into Latte vertex code, then uses GX2 fetch, shader and triangle draw commands. The original draw application binds an untextured primary-color pixel shader; textured uses the bounded sampler/TEV path below. CPU-transformed positions, colors and UV are never substituted for shader inputs. The shader ABI defines the supported translation.

A complete software preflight validates the list and computes reference pixels before any native submission. The GPU target starts with the original target contents; its synchronous readback must match every staged target byte before guest pixels, retained state, memory generations or P3D completion commit. Backend failures and mismatches fail the list without software fallback. The existing TXT trace retains a hash and 4×4 RGBA sample grid for each retired GPU readback, including pixels from a list later rejected for parity.

CI artifact wiiu-gx2-guest-<source commit> contains the separately named ctr2wup-gx2-guest.rpx/.wuhb, reference images, provenance and one short START-HERE.md guide. The report distinguishes host software frame checks, independent shader validation and native cross-compilation. Physical GPU execution and raster parity remain unverified; retained CPU preflight and readback costs preclude a performance claim.

Textured Guest¶

python3 tools/validate-libctru.py --application textured --wiiu --gx2 --sanitize \
  --output artifacts/reports/compiled-textured-local

This distinct original application submits retained shader/texture state and tests sample replacement and primary-color modulation. Its patterned top/bottom frames receive independent exact host comparison. The native build is named CTR2WUP Textured Guest, with ctr2wup-textured-guest.rpx/.wuhb in CI artifact wiiu-textured-guest-<source commit>. Source identity, checked reference images, notices and one two-step START-HERE.md guide accompany the binaries.

The texture contract covers all 14 base formats, 8..1024 dimensions, nearest clamp/repeat/mirror, exact Q16 UV with W=1, and replace/binary-primary modulation. Decoded texture storage has explicit ownership; native pitched upload reverses rows for PICA V origin, flushes caches and retires GPU references before reuse/free. Physical sampling parity and performance remain unverified.

Resource and transaction contract¶

Commands arrive through the existing standard GSP/GX command-list operation; configuration-only lists retain the previous behavior.
Vertex/index resources and targets resolve only to tracked owned Old-family linear allocations: guest VA 0x14000000 maps to PA 0x20000000. Static guest mappings, VRAM and unowned physical addresses are rejected.
Permission splits must retain allocation identity. Source spans need read permission; tiled targets need read/write permission. Geometry snapshots are bounded to 4 MiB. Texture data must fit wholly in geometry or one of at most 32 separate snapshots with 4 MiB total additional source bytes. Separate spans cannot overlap geometry or each other; partial geometry aliases fail. Relay memory, command-list/target aliases and source/target feedback fail.
One resource base and one target binding are supported per command list. Changing either between draws fails transactionally. State writes after the last draw may prepare the next list; shader/configuration-only uploads persist. Texture bindings may change between draws within the checked snapshots.
Targets are 8×8 Morton tiled RGBA8/ABGR storage, with dimensions that are multiples of eight and no larger than 512. The adapter converts to the renderer's linear RGBA view, then writes the complete target through checked guest memory once.
Supported fragment state is explicitly defined: primary-color replacement or bounded Texture0 replace/modulate TEV, disabled lighting/depth/stencil/blending, copy logic and full color writes. TEV operands/scales are zero; later stages pass Previous. Required registers need fully defined byte masks. Unsupported or incomplete state fails before publishing pixels, shader state or completion.
Successful commit updates memory generations, invalidates affected code aliases and exclusive state, commits shader/register/counter state and publishes P3D completion. A failed list preserves its target and scene state. Earlier successful queue entries remain committed; the failing entry stays pending without its IRQ.

The scene contract defines the bounded loader, fixed attribute, uniform and MOV/ADD/MUL/NOP/END shader subset. ADD/MUL accept only exact normal float24/signed-zero results with integer evaluation and transactional numeric rejection; original arithmetic checks validate the exact numeric subset separately from this MOV fixture. Broader arithmetic/filtering, mipmaps, perspective, general TEV, clipping and depth/blend/stencil remain unsupported. A raw VFP push/pop guard fix supports exact bit transfers under CRT FPSCR controls; it does not enable unsupported arithmetic modes.

Startup and limits¶

The original program uses the standalone startup profile, with known unavailable lookups APT:S, APT:A and ptm:sysm. It reaches its own main/assertions/exit. General applets, retail startup and commercial compatibility are unsupported. Physical procedures belong to the matching diagnostic package. A successful original draw does not establish useful game speed or complete renderer support.

Maintained source: docs/guest-pica-draws.md · 3849a94bd97b. GitHub source and issue links may require repository access.
